Screens & User Interfaces

In Waste of Space, you can make UI elements using Instance.new, however it must be through a Screen or an ARController, and you must parent the element to the canvas of the part. For more info on each element, see Roblox's official UI guide

Note: at the time of writing, TextBoxes do not sync their values to serverside (where microcontroller code runs). Use alternative methods of input instead (keyboard, microphone)

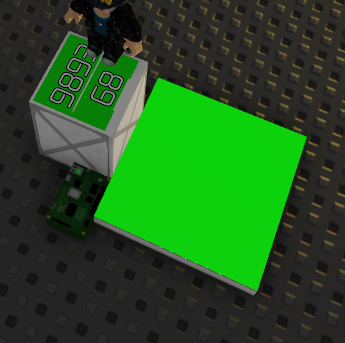

Screen demo

local screen = assert(Network:GetPart("Screen"), "no screen connected")
-- we need to parent UI instances to canvas (wont render otherwise)
-- if you wanted to use an AR controller, simply replace screen with it
-- local canvas = AR controller:GetCanvas("2D")
local canvas = screen:GetCanvas()

local frame = Instance.new("Frame")
frame.Size = UDim2.fromScale(1, 1)
frame.BackgroundColor3 = Color3.fromRGB(0, 255, 0)
frame.Parent = canvas

coroutine.yield()

To make parts in 3D space (AR controller), first Instance.new a Part then parent to the 3D canvas instead.

ARController demo

local arController = assert(Network:GetPart("ARController"), "no ar controller connected")
local canvas = arController:GetCanvas("3D")

-- spawn a part at y = 1024 (this is the height of the top of the baseplate)
local part = Instance.new("Part")
part.Size = Vector3.new(8, 8, 8)
part.Position = Vector3.new(0, 1024, 0)
part.Color = Color3.fromRGB(255, 0, 242)
part.Shape = Enum.PartType.Ball
part.Parent = canvas

coroutine.yield()
